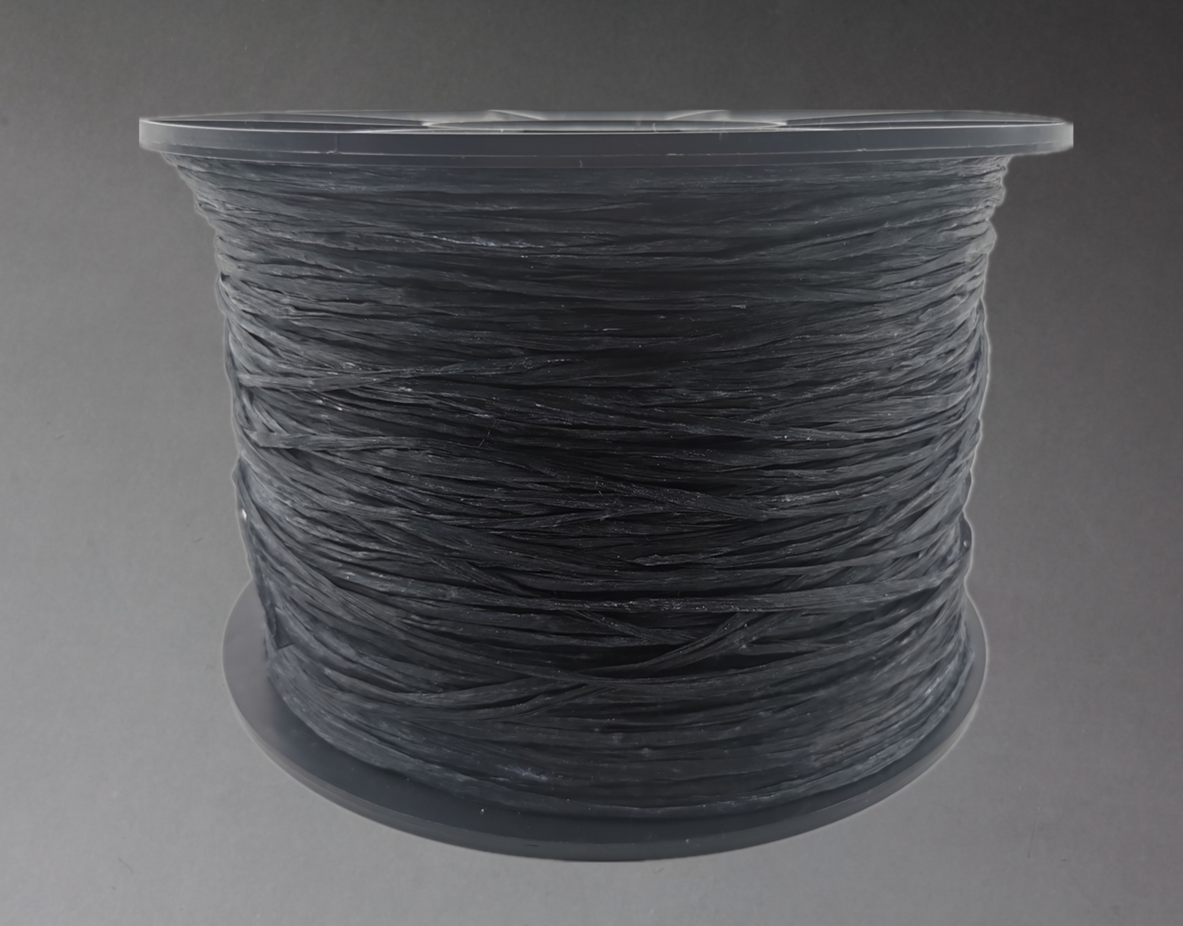

Carbon Fiber Yarn With PTFE
Description:
TOP SEALING Carbon Fiber Yarn With PTFE has the performance between PAN Filament and carbon fiber, which is impregnated with PTFE dispersion, and It can be used to braide packing or as the reinforcing material for sealing materials.
Advantage:
Have high strength and modulus. Temperature resistance from -240 to +350.
Specification:
| Unit | Number of Filament | Yield Tex G/1,000M |
| 3K | 3000 | 200 |
| 6K | 6000 | 400 |
| 12K | 12000 | 800 |
| 24K | 24000 | 1600 |
| 48K | 48000 | 3200 |
| Density | G/CM3 | 1.8 |
| Elongation | % | 1.8 |
| Tensile Strength | KG/MM2 | 440 |
| KSI | 620 | |
| MPA | 4278 | |
| Tensile Modulus | TON/MM2 | 24.5 |
| MSI | 35 | |
| GPA | 240 | |
| Filament Diameter | μ | 7 |
