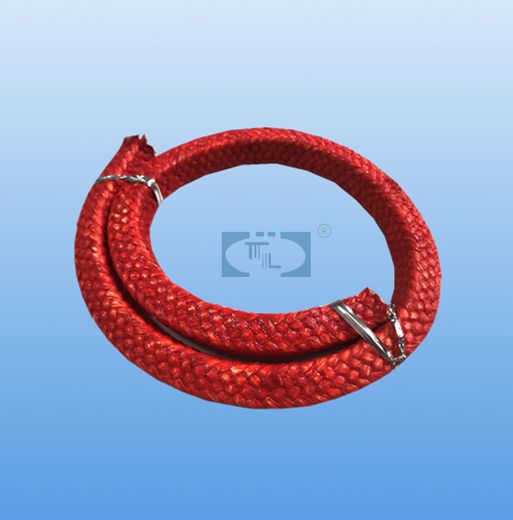

It is diagonally braided by C or E-glass fiber yarns which are pre-impregnated by PTFE suspension liquid, afterward it will be re-impregnated by PTFE and lubricated by silicone oil, it is one of the most popular and ideal packings for the replacement of asbestos PTFE packing.

Application:

1.It can be used in alkalis, thinned inorganic acids, water, steam, organic gases, solutions of every kind.

2.It can be utilized in paper mills, dyeing plant, foodstuff, pharmaceutical and oenologic industries

Application Data:

Pressure: bar	20				40				150
PH Range	0-14
Temp.℃	-200 to +280
Density:   (g/cm³)	1.4
Size	1/8"-2"
	3mm-50mm

Package(Per Spool)：

Regular:3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pound, 5kg, 5 pound,10kg, 10 pound.

Other packages are available on request
