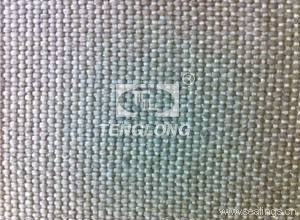

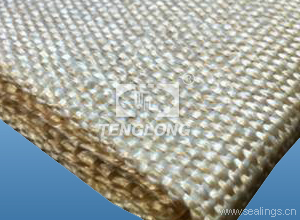

TEXTURIZED FIBERGLASS CLOTH
Description:
Made of continuous C glass or E glass filament texturized yarns, they demonstrate a better insulating properties and greater fullness. Insulating properties depend upon conductivity and radiation and these are influenced by the fabric construction. It is the ideal substitute of the asbestos cloth.
It can resist 450℃-550℃
Applications:
All types of thermal insulation and heat protection
Welding blankets and fire curtains
Expansion joints
Basic cloth for coatings and laminations
Specifications:
Style No. | Thickness (mm) | Weight (g/m2) |
| Width (m) | Weave |
3800-08 | 0.80 | 650 | 18 | 1.0-1.8 | Plain |
3800-10 | 1.00 | 800 | 24 | 1.0-2.0 | Plain |
3800-15 | 1.50 | 1000 | 30 | 1.0-2.0 | Plain |
3800-20 | 2.00 | 1250 | 36 | 1.0-2.0 | Plain |
3800-30 | 3.00 | 1800 | 52 | 1.0-2.0 | Plain |
|
|

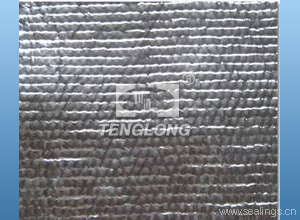

| 3800TEXTURIZED FIBERGLASS CLOTH | 3800AL FIBERGLASS CLOTH COATED ALUMINUM FOIL |
 |  |
| 3800HTHEAT TREATED (CARAMELIZED) FIBERGLASS CLOTH | 3800GGRAPHITE COTAED FIRBERGLASS CLOTH |
| |
| 3800VFIBERGLASS CLOTH COATED VERMICULATE |
