TEXTURIZED FIBERGLASS TAPE
Description:
It is fabricated from high quality texturized C glass or E glass fiber yarns that will not burn and will withstand continuous exposure to temperatures of 1000°F / 520°C. It resists most acids and alkalis and is unaffected by most bleaches and solvents. It is an excellent substitute for asbestos tape.
Texturized fiberglass tape with copper wire, nickel wire or stainless wire are also available.
Applications:
All types of thermal insulation and heat protection provide protection of industrial wires, cables, hoses, tube and pipe and also provide thermal insulation and personnel protection. Also used as a gasket or seal.
Spcifications:
Temperature: 450℃-550℃
Thickness:0.8mm up to 6mm
Width: 10mm up to 200mm
Weaving structure: plain
Roll length: 25M or 30m or 50m
arp density | Weft density | Thickness | Weight | Weave | Width | Tensilestrength N/10×200mm |
8.3±1 | 6±1 | 0.8±0.08 | 700±70 | plain | 2-10 | 300 |
8±1 | 4±0.5 | 1.0±0.10 | 850±85 | plain | 2-10 | 350 |
5.7±1 | 3.2±0.5 | 1.5±0.15 | 1100±110 | plain | 2-10 | 500 |
6±1 | 2.5±0.5 | 2.0±0.20 | 1400±140 | plain | 2-10 | 680 |
6 | 2.3±0.5 | 2.5±0.25 | 1600±160 | plain | 2-10 | 710 |
6±1 | 2.0±0.2 | 3.0±0.30 | 1800±180 | plain | 2-10 | 750 |
8.3±1 | 6±1 | 0.8±0.08 | 700±70 | plain | 2-10 | 250 |
8±1 | 4±0.5 | 1.0±0.10 | 850±85 | plain | 2-10 | 290 |
5.7±1 | 3.20.5 | 1.5±0.15 | 1100±110 | plain | 2-10 | 420 |
6±1 | 2.5±0.5 | 2.0±0.20 | 1400±140 | plain | 2-10 | 560 |
6±1 | 2.3±0.5 | 2.5±0.25 | 1600±160 | plain | 2-10 | 600 |
6±1 | 2.0±0.5 | 3.0±0.30 | 1800±180 | plain | 2-10 | 640 |
|
|
3700 | 3700AL |

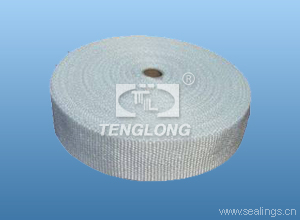

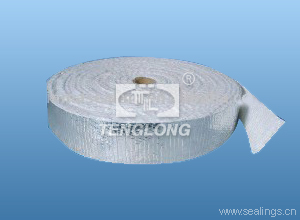

TEXTURIZED FIBERGLASS TAPE | FIBERGLASS TAPE COATED ALUMINUM FOIL |
|
|
3700HT | 3700G |

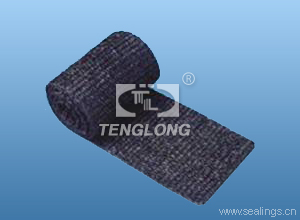

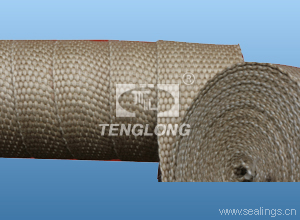

HEAT TREATED (CARAMELIZED) FIBERGLASS TAPE | GRAPHITE COTAED FIRBERGLASS TAPE |
|
|
3700AD | 3700S |

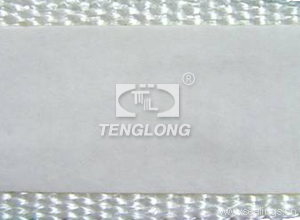

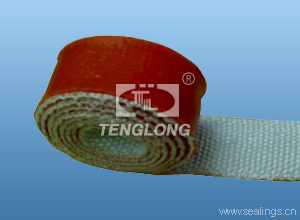

| FIRBERGLASS TAPE BACKED WITH SELF-ADHESIVE TAPESTYLE | SILICONE COATED FIBERGLASS TAPE |
| |
3700V | |
FIBERGLASS TAPE COATED VERMICULATE |
